Welcome to the official website of Lansu Laser! Laser equipment and production process solution provider.

Home

20W fiber laser marking machine

2021-06-03 11:43:08 Dongguan Haospeed Industrial Co., Ltd. 閱讀

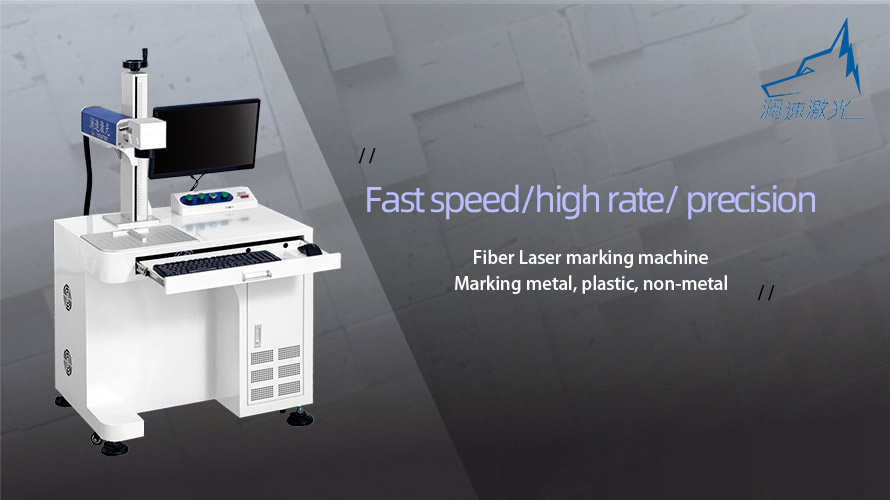

20W fiber laser marking machine

1. The fiber laser marking machine adopts an integrated modular overall structure, without optical pollution and power coupling and loss, air cooling, high efficiency, long life and less maintenance.
2. Fast marking speed. The fiber laser marking system uses a high-speed galvanometer system and optimized software and hardware control system to achieve high-speed marking. The marking speed can reach 7000mm / s.

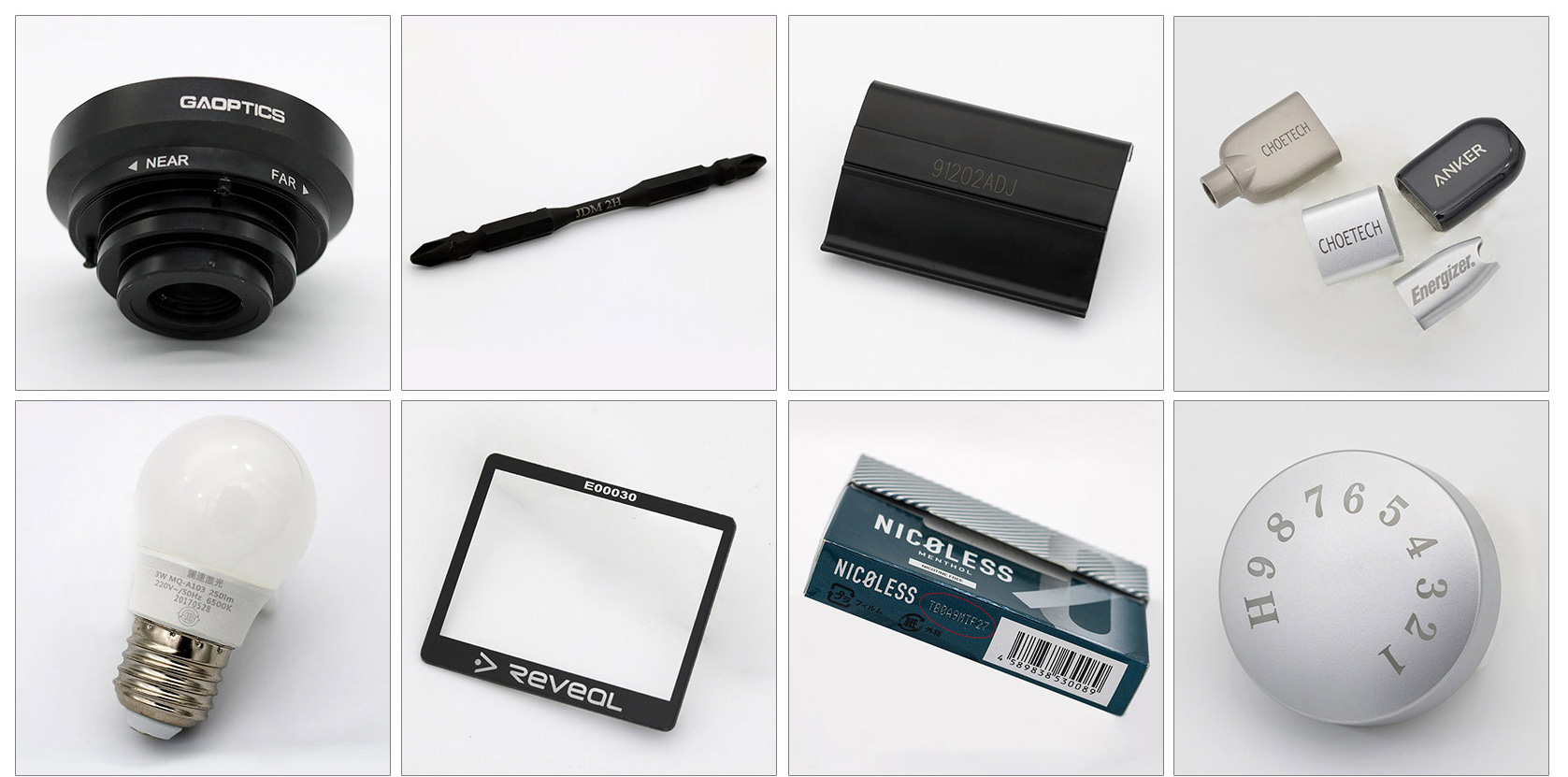

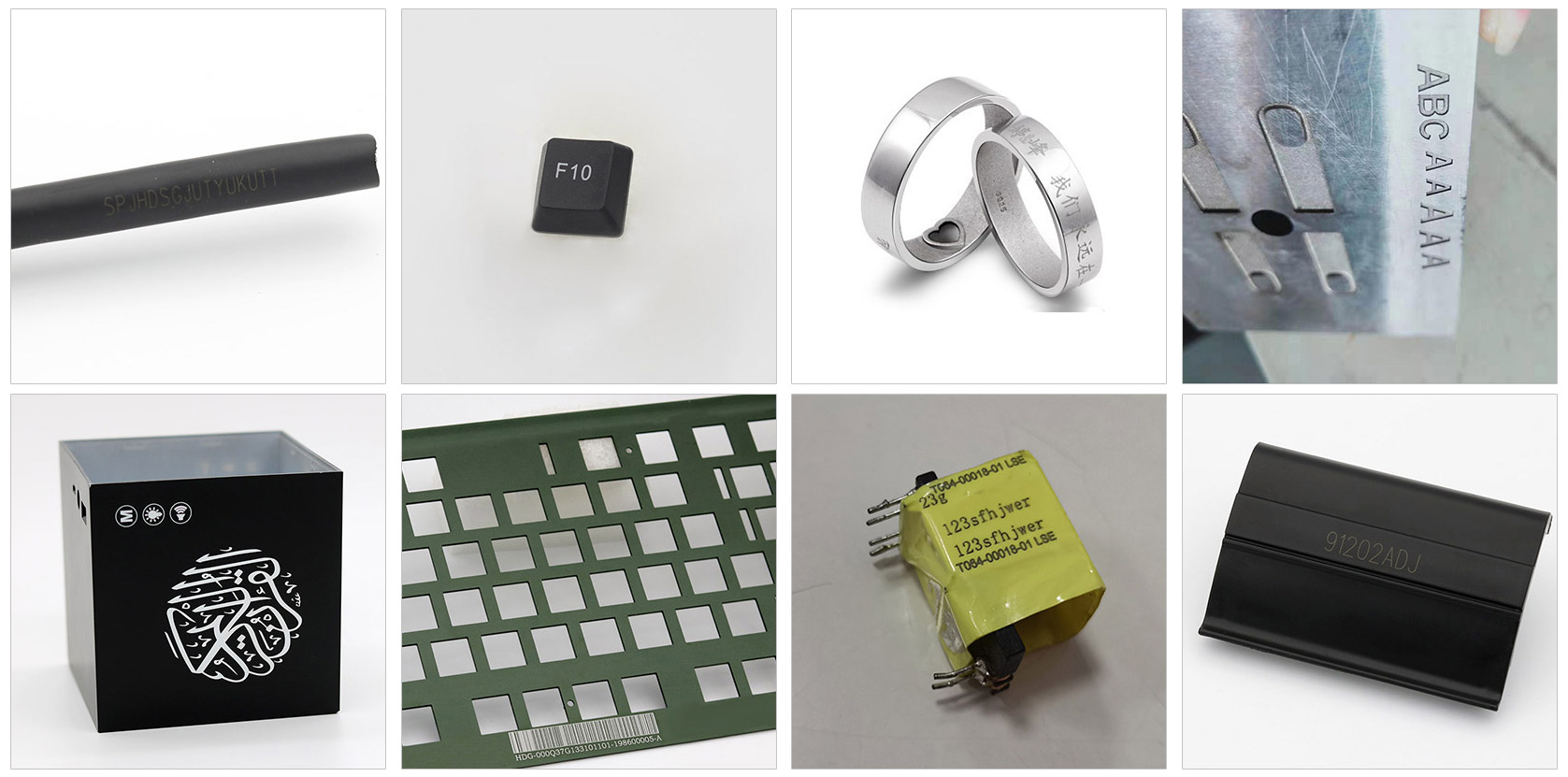

3. It has a wide range of marking, can mark all metals and some non-metals, and can meet the marking requirements of 95% of users' products.
4. Low operating cost, the relative peak power of the fiber laser is higher, and the current required for marking is small, less than one kilowatt hour.
5. It can work normally in harsh environment. The equipment can work normally in harsh environment such as shock, vibration, high temperature or dust.

National Service Hotline
0769-8122-1176

2019.06.17
views：

20W fiber laser marking machine Descritption


  20W fiber laser marking machine used the fiber laser to output the laser, and then realized the marking function through the high-speed scanning vibroscope system.

Optical fiber laser marking high efficiency of mechanical and electrical light conversion.It use of air-cooled cooling and it have compact size.

The advantages of the output beam are: good quality, high reliability, ultra-long operating life, energy saving, carving metal materials and some non-metallic

materials.

Moreover, the marking speed is 3 ~ 5 times that of the traditional first generation lamp pump marking machine and the second generation semiconductor marking

machine.




The characteristics of 20W fiber laser marking machine


1,20W fiber laser marking machine is used in the fields with high requirements for depth, smoothness and precision, such as clock, mold industry, mobile phone

motherboard two-dimensional code diagram marking.

2,The beam quality of fiber optic laser marking machine is better than that of traditional solid laser marking machine. It Is （TEMOO ）output and focusing spot diameter

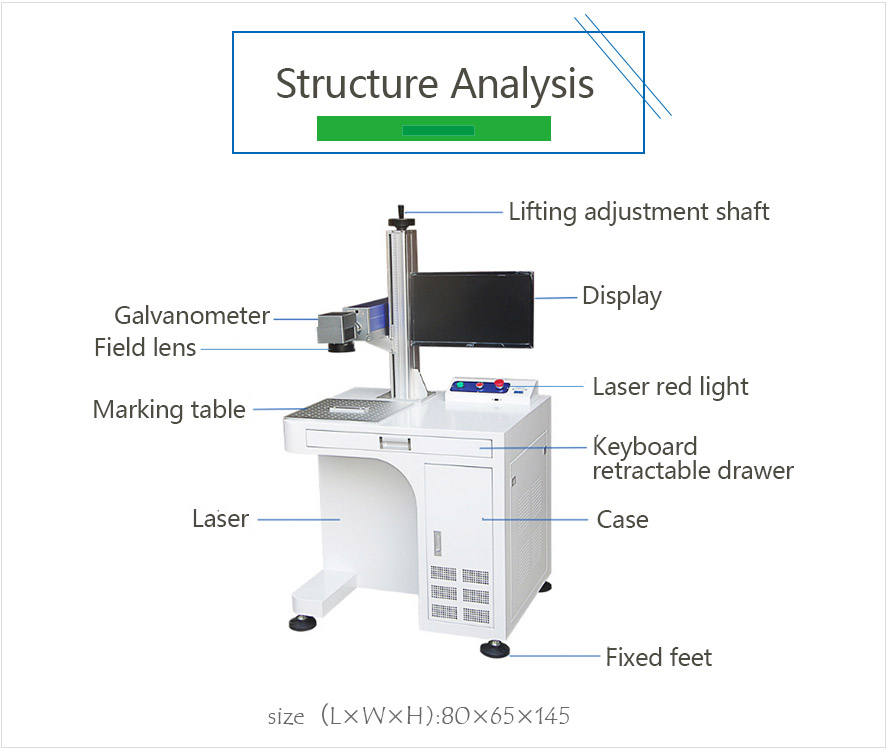

Strycture Analysis
